| Code | Dash | DN | Hose I.D. | Hose I.D. | Hose O.D. | Hose O.D. | Working Pressure | Working Pressure | Min. Burst Pressure | Min. Burst Pressure | Min. Bend Radius | Min. Bend Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (psi) | (Bar) | (psi) | (Bar) | (mm) | (in) | |||

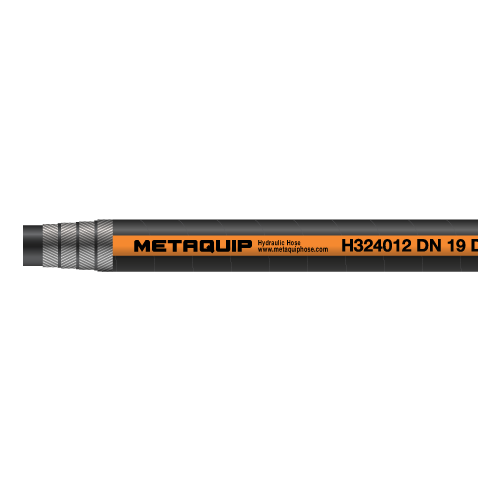

| H324012 | 12 | 19 | 3/4 | 19.0 | 1.26 | 31.9 | 6090 | 420 | 24360 | 1680 | 280 | 11.00 |
| H324016 | 16 | 25 | 1 | 25.4 | 1.51 | 38.3 | 5510 | 380 | 22040 | 1520 | 340 | 13.40 |
| H324020 | 20 | 31 | 1.1/4 | 31.8 | 1.77 | 44.9 | 5075 | 350 | 18850 | 1300 | 460 | 18.10 |
| H324024 | 24 | 38 | 1.1/2 | 38.1 | 2.08 | 52.9 | 4205 | 290 | 16820 | 1160 | 560 | 22.05 |
| H324032 | 32 | 51 | 2 | 50.8 | 2.66 | 67.5 | 3625 | 250 | 14500 | 1000 | 700 | 27.55 |
