APPLICATION
Medium pressure hydraulic lines 40 to 250 bar and requires compact outer dia. For use with petroleum, synthetic or water based fluids in hydraulic systems. Suitable for agricultural, earthmoving & material handling equipments and machineries/systems.

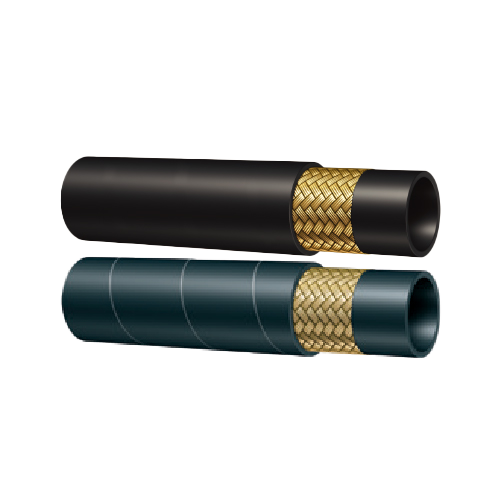

CONSTRUCTION
Core: Oil & water resistant Synthetic rubber
Reinforcement: Single steel wire braid
Cover: Black Color, Synthetic rubber resistant to weather and abrasion, oil & ozone.
TEMPERATURE RANGE
Continuous: -40°C to +120°C
Medium pressure hydraulic lines 40 to 250 bar and requires compact outer dia. For use with petroleum, synthetic or water based fluids in hydraulic systems. Suitable for agricultural, earthmoving & material handling equipments and machineries/systems.
CONSTRUCTION
Core: Oil & water resistant Synthetic rubber
Reinforcement: Single steel wire braid
Cover: Black Color, Synthetic rubber resistant to weather and abrasion, oil & ozone.
TEMPERATURE RANGE
Continuous: -40°C to +120°C
| Part Number | Dash | I.D | O.D | Weight | W.P | Bend Radius |
|---|---|---|---|---|---|---|
| (mm) | (mm) | (kg/m) | (psi) | (mm) | ||
| 8T4AA00600 | -4 | 6.0 | 13.0 | 0.198 | 3250 | 100 |
| 8T4AA00800 | -5 | 8.0 | 14.5 | 0.236 | 3120 | 115 |
| 8T4AA01000 | -6 | 10.0 | 17.2 | 0.313 | 2610 | 130 |
| 8T4AA01200 | -8 | 13.0 | 20.1 | 0.367 | 2320 | 180 |
| 8T4AA01600 | -10 | 16.0 | 23.1 | 0.466 | 1900 | 200 |
| 8T4AA02000 | -12 | 19.0 | 27.3 | 0.555 | 1530 | 240 |
| 8T4AA02500 | -16 | 25.0 | 35.2 | 0.950 | 1280 | 300 |
| 8T4AA03200 | -20 | 32.0 | 42.1 | 1.095 | 920 | 420 |
| 8T4AA03800 | -24 | 38.0 | 49.2 | 1.411 | 730 | 500 |
| 8T4AA05100 | -32 | 51.0 | 62.4 | 1.864 | 600 | 630 |
